SMARC-Carrier
Universal SMARC Development Kit
Overview
The SMARC-Carrier is a versatile development carrier board with rich communication interfaces, fully compliant with the SGeT SMARC 2.1 hardware specification.
Engineered for seamless integration with the SOM-M8370, SOM-M8390 and the other SMARC compatible SMARC SOM modules, it delivers a robust and flexible platform for rapid product prototyping.
By combining the selected SMARC module with commercially available add-on cards, developers can quickly emulate target product functionalities, enabling efficient software development, hardware validation, and system integration.
Its compact form factor and versatile connectivity make it ideal for AIoT, embedded computing, and edge intelligence applications.
Features
- SMARC revision 2.1 compliant
- 2 x Gigabit Ethernet with RJ45 port
- 1 x PCIe x1 2.5GTs/5GTs on M.2 A/E Key 2230/2242
- 1 x HD display / 2.0b
- 1 x USB 3.0 with Type-A port
- 1 x USB 3.0 with Type-C port
- 1 x USB 2.0 with Type A port
- 1 x USB 2.0 OTG with Type-C port
- 2 x MIPI-DSI 4 lanes interface
- 2 x MIPI-CSI 4 lanes interface
- 1 x MicroSD slot
- 1 x Speaker connector + 1 x Microphone connector with on board audio codec
- 1 x I2S interface
- 1 x I2C interface
- 2 x Touch panel interface
- 1 x CAN bus interface
- 4 x UART interface
- 1 x DC power in

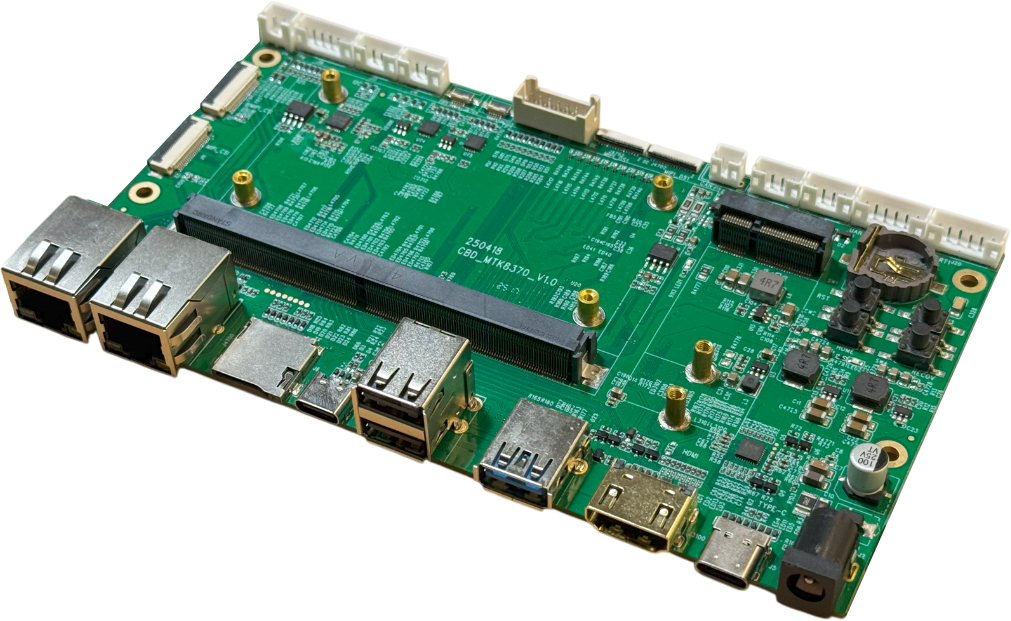

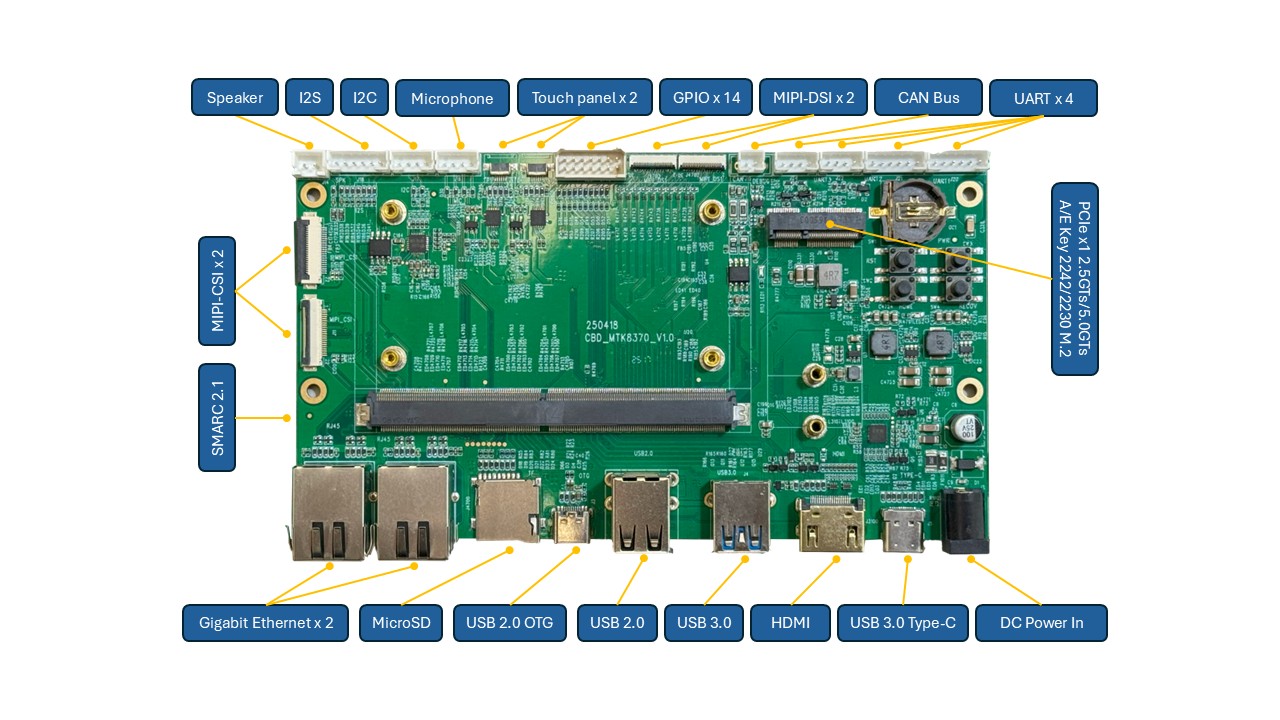

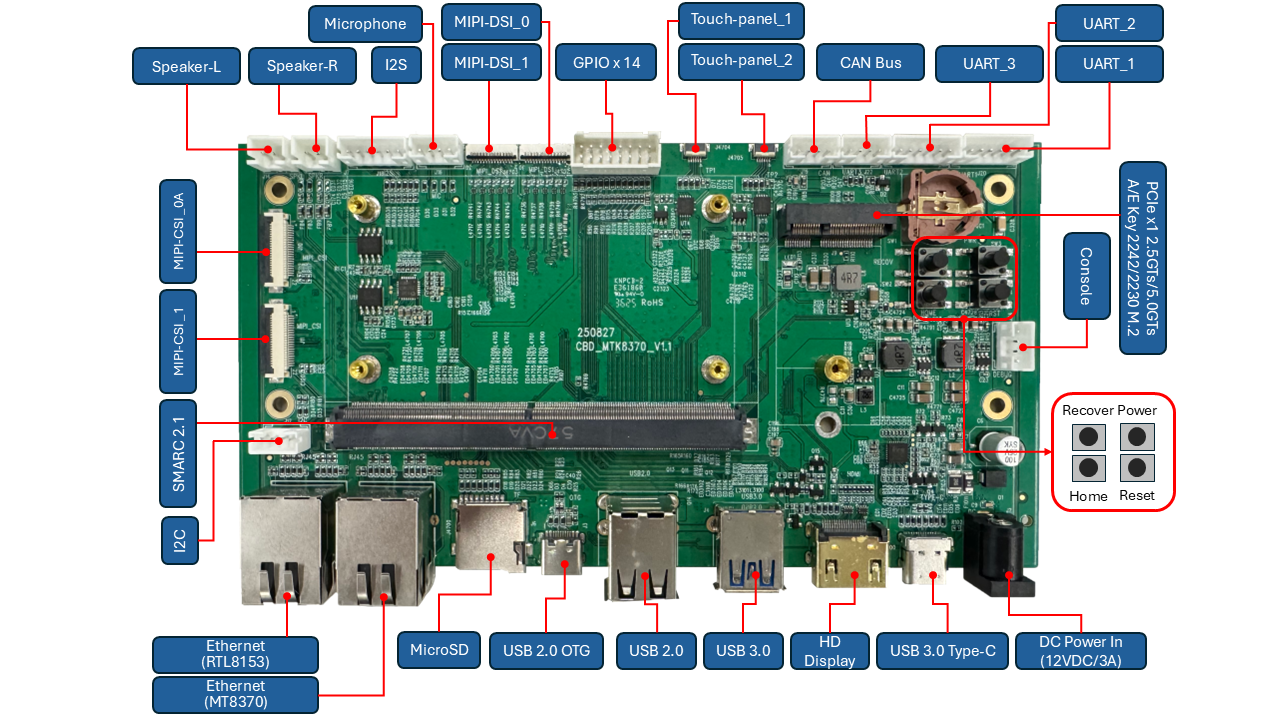

I/O & Interfaces
Specifications
| Video | HD display | 1 x HD display 2.0b |
| MIPI-DSI | 2 x MIPI-DSI 4 lanes | |
| Camer | 2 x MIPI-CSI 4 lanes (option 1 x MIPI-CSI 4 lanes + 2 x MIPI-CSI 2 lanes) | |
| Audio | Audio CODEC | 1 x Speaker, 1 x Microphone |
| Connectivity | Ethernet | 2 x 1000BASE-T Gigabit Ethernet with RJ-45 connector |
| Expansion Bus | USB 2.0 | 1 x USB 2.0 Type-A Female 1 x USB 2.0 OTG Type-C |
| USB 3.0 | 1 x USB 3.0 Type-A Female 1 x USB 3.0 Type-C |
|
| PCI Express | 1 x PCIe x1 2.5GTs/5GTs on A/E Key M.2 2242/2230 socket | |
| Storage | MicroSD | 1 x T-Flash/MicroSD slot |
| I/O | I2S | 1 x I2S connectors |
| I2C | 1 x I2C connector | |
| CANBUS | 1 x CAN2.0B connector | |
| GPIO | 14 x GPIO with connector | |
| UART | 4 x UART connector | |
| Touch panel | 2 x Touch panel connector | |
| Power | DC | 12VDC |
