Embedded OSM SOM (System on Module)
OSM-M8371 / OSM-M8391
MediaTek Genio 520/720 System On Module
Overview

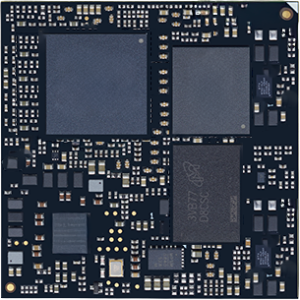

The SERA SOM-M8371/SOM-M8391 is a OSM module powered by the MediaTek Genio 520/720 SoC includes an octa-core processor with 2x Arm Cortex-A78 cores and 6x Arm Cortex-A55, and an Arm Mali G57 MC2 GPU
The module incorporates a spate of IoT technologies, such as on-device artificial intelligence (AI) capabilities and support for up to 2 cameras, while delivering a low power envelope, making it the ideal solution for robotic and drone applications across various sectors, including consumer, enterprise, defense, industrial, logistics, and more.
Features
- Genio 520: 2x ARM Cortex-A78@2.2GHz + 6x ARM Cortex-A55@2.0GHz
- Genio 720: 2x ARM Cortex-A78@2.6GHz + 6x ARM Cortex-A55@2.0GHz
- MediaTek 8th Generation NPU (NPU8.0)(Generative AI), up to 9 TOPS
- SGET OSM v1.2 compliant
- 8GB LPDDR5X
- MIPI-DSI, 1 set of 4D1C (MIPI C/D PHY) D-PHY 2.5Gbps, C-PHY 2.0Gbps
- Display resolution up to 4K/60Hz
- Onboard 64GB UFS
- Supports one GbE port
- Supports 2 x 4-Lane MIPI-CSI interfaces
- 2xUSB 3.0/2xUSB 2.0 interfaces
- Support Android/Yocto Linux/Ubuntu operation
- A high-performance multi-core AI processor with dedicated visual processing engine for a wide variety of computer vision applications, including facial recognition, object/people identification, collision warning, driver monitoring, gesture and posture detection, image segmentation
- Rich IO for peripherals, including scanners, card readers, sensors, factory equipment, network connectivity
Specifications
| System | Processor | OSM-M8371: ARM Cortex-A78@2.2GHz x 2 + ARM Cortex-A55@2.0GHz x 6 OSM-M8391: ARM Cortex-A78@2.6GHz x 2 + ARM Cortex-A55@2.0GHz x 6 |
| APU | MediaTek 8th Generation NPU (NPU8.0)(Generative AI), up to 9 TOPS | |
| RAM | 8GB LPDDR5X | |
| Storage | 64GB UFS | |
| Display | GPU | ARM Mali-G57 MC2 880MHz |
| DisplayPort | 2 x 4-Lane eDP | |
| MIPI | 1 x 4-Lane MIPI-DSI | |
| Camera | CSI | 2 x 4-Lane MIPI-CSI |
| Video | Encode | 4K@30fps 8-bit (H.265/H.264) |
| Decode | 4K@60fps 8/10-bit (H.265/H.264/VP9/AV1), FHD@60fps (VP8/MP2/MP4) | |
| Connectivity | Ethernet | 1 x Gigabit Ethernet |
| Extension Busses | USB | 2 x USB 3.0 / 2xUSB 2.0 |
| UART | 4 x Serial UART | |
| I2S | 2 x I2S/PDM | |
| I2C | 2 x I2C | |
| GPIO | 28 x GPIO | |
| PCIe | 1 x PCIe 1 Lane Gen2 | |
| JTAG | 1 x JTAG | |
| Power | DC | 5VDC |
| Foam Factor | OSM | OSM Large size |
| Dimension | 45 x 45 mm | |
| Operation System | Linux | Yocto Linux |
| Ubuntu | ||
| Operating Temperature | 0°C to +60°C | |
