1.09T 10G Aggregation Switch

ENS-O0624IE

24x10G and 6x100G ultra cloud switch with hot-swappable PSU and fans, front-to-rear airflow. Designed for meets the requirements of next-generation Metro and enterprise networks, making it perfect for traditional layer 3 core or fully virtualized data center leaf switches.

上一頁下一頁
24x10G SFP+, 6x100G QSFP-28
1+1 Hot-swappable PSU, 2+1 Fans
C-LAG, VXLAN, BGP-EVPN, BFD, IPSG, IPV6
SeraNOS Enterprise OS

Overview

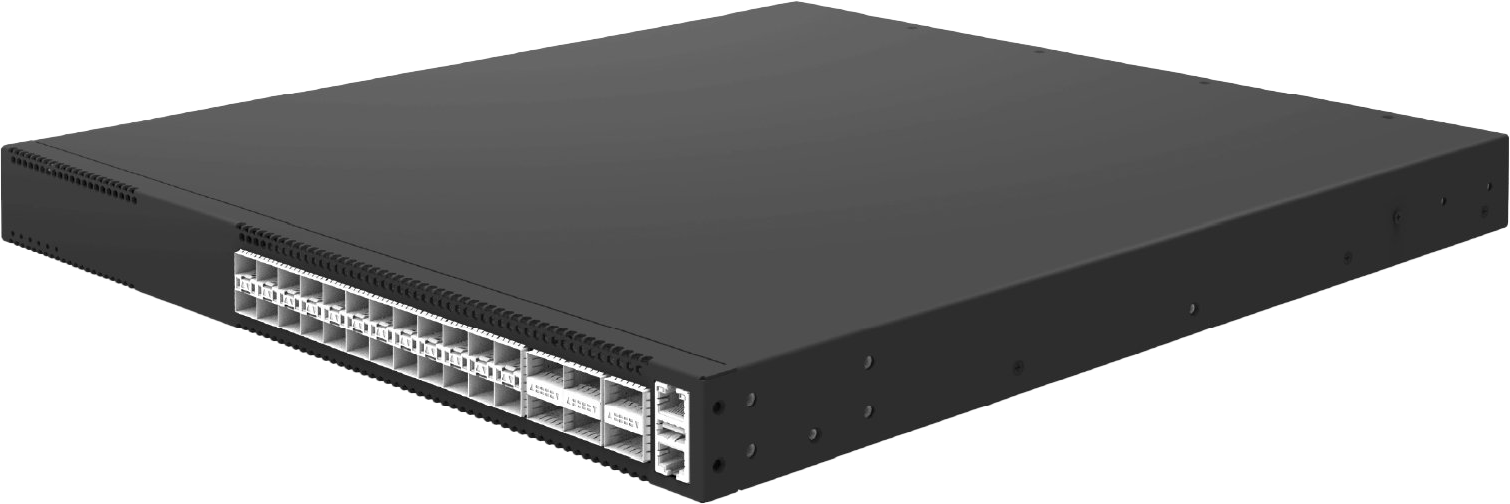

The ENS-O0624IE is a 1RU ultra cloud switch with 24x 10G SFP+ and 6x 100G QSFP28 ports, delivering 1.09 Tbps switching capacity and full wire-speed L2/L3 forwarding. It features hot-swappable 1+1 power modules and 2+1 fan modules with front-to-rear airflow, optimized for high-performance data center fabrics and cloud-scale spine-leaf deployments.

Powered by Marvell Aldrin 2 ASIC and multi-core ARM-based CPU, and running containerized SeraNOS (SONiC-based), it supports MC-LAG, VXLAN, BGP-EVPN, BFD, IPSG, IPV6, and real-time telemetry via INT and open automation tools.

Features

  • 24x 10G SFP+, 6x 100G QSFP28 Ports
  • 1.09 TBPS SWITCHING CAPACITY WITH FULL L2/L3 FORWARDING
  • MARVELL TERALYNX ULTRA-LOW LATENCYAldrin 2 High Performance ASIC
  • MULTI-CORE ARM-Based CONTROL CPU WITH 32 GB eMMC
  • MC-LAG, VXLAN, BGP-EVPN, BFD, IPSG, IPV6 enterprise features
  • HOT-SWAPPABLE 1+1 POWER MODULES
  • HOT-SWAPPABLE 2+1 FAN MODULES
  • FRONT-TO-REAR AIRFLOW DESIGN
  • 1RU FORM FACTOR FOR CLOUD FABRIC DEPLOYMENTS

Software Features

Layer 3 Features

  • IPv4/v6 Dual Stack
  • Policy Based Routing
  • Resilient ECMP
  • ARP-to-Host
  • VRF
  • Bi-Directional Forwarding Detection (BFD)
  • IGMP v2/v3
  • Route Map
  • VRRP
  • GRE
  • Routing Protocols: OSPF v2/v3, BGP, MP-BGP

Quality of Service (QoS)

  • 8 Queues per Port
  • 802.1p Based Classification
  • DSCP Based Classification
  • Strict priority queueing
  • DWRR Scheduling
  • Policing/Shaping
  • Rate Limiting

Virtualization Features

  • VXLAN Centralized/Distributed Gateway
  • EVPN Type 2/3/5

Management and Monitoring

  • Asteria Campus Controller
  • Industry Standard CLI
  • Zero Touch Provisioning (ZTP)
  • SNMP v1/v2/v3
  • sFlow
  • Port Mirroring
  • Syslog
  • Log Management
  • PTP IEEE 1588v2 (TC and BC)
  • Containerized Custom Tools
  • BGP/BFD Operational Status

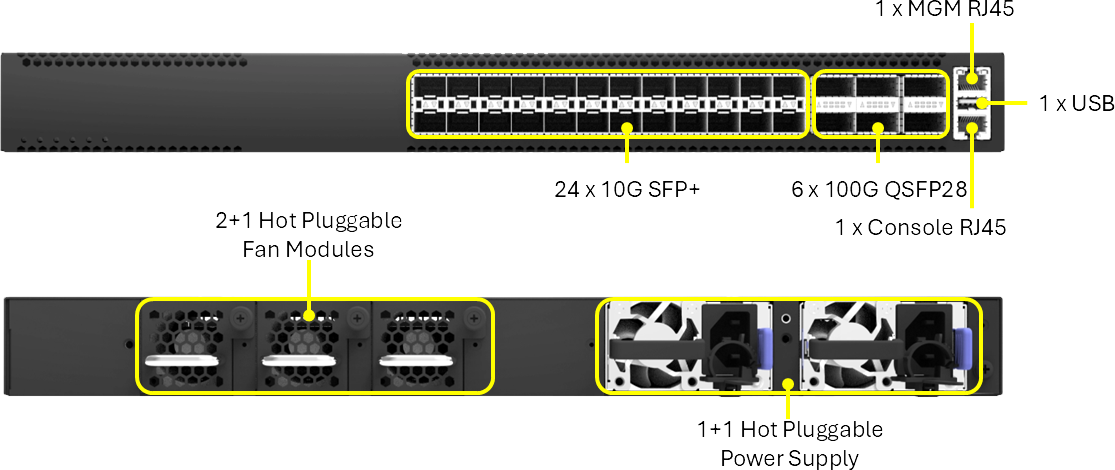

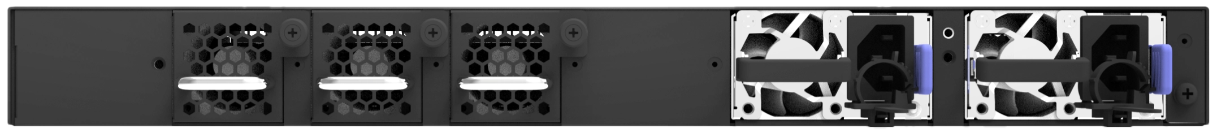

Panel Illustration

Specifications

Ports
 24 x 10G SFP+, 6 x 100G QSFP28
Switch ASIC
 Marvell Aldrin 2
Switching Capacity
 1.09Tbps
Mac Address Entries
 32K
Forwarding Rate
 600Mpps
IPv4 Prefix Routes
 16K
RAM
 4GB
IPv6 Prefix Routes
 8K
Flash Memory
 32GB eMMC
ARP Entries
 16K
Max. Power Consumption
 125W
Input Range
 100-240V AC
Packet Buffer
 6MB
Power Supply
 1+1 Hot-pluggable
Rack Space
 1RU
Fan Modules
 2+1 Hot-pluggable
Dimensions (HxWxD)
 44 x 440 x 470mm
Airflow
 Front to Rear
Weight
 9KG
Operating Temperature
 0 – 45℃
