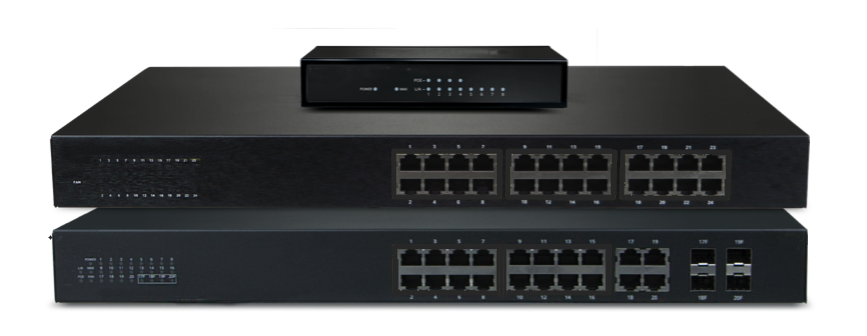

Unmanaged Gigabit Ethernet Switches

Gigabit Unmanaged Switches

Plug-and-play no setup required
Auto MDI/MDIX for each port
Back pressure flow control for half-duplex
IEEE802.3x Flow Control supports for Full Duplex
Store-and-Forward switching method
Supports Jumbo Frame
Embedded Packet Buffer Memory for Performance Improvement
Broadcast/Multicast/Unicast Storm Control
IEEE802.1p, Priority Queue
Non-blocking switching architecture for maximum throughput at wire speed
Supports Speed Down Shift
Power Saving By Link Status/ Cable Length

FEATURES

Plug-and-play no setup required
Auto MDI/MDIX for each port
Back pressure flow control for half-duplex
IEEE802.3x Flow Control supports for Full Duplex
Store-and-Forward switching method
Supports Jumbo Frame
Embedded Packet Buffer Memory for Performance Improvement
Broadcast/Multicast/Unicast Storm Control
IEEE802.1p, Priority Queue
Non-blocking switching architecture for maximum throughput at wire speed
Supports Speed Down Shift
Power Saving By Link Status/ Cable Length

SPECIFICATIONS

Interface	UMS100-5TG-I	UMS100-8TG-I	UMS100-16TG-I	UMS100-24TG-I
Gigabit Ethernet	5	8	16	24
Performance
Switching Capacity	10 Gbps	16 Gbps	32 Gbps	48 Gbps
MAC Address Table Size	2K	4K	8K	8K
Packet Buffer Memory	128KB	192KB	512KB	512KB
Jumbo Frame Size	9KB	9KB	10KB	10KB
Forwarding Rate (64-byte)/Port	7,440,000 pps	11,900,000 pps	23,808,000 pps	35,712,000 pps
Auto MDI/MDI-X	Yes	Yes	Yes	Yes
LED
Per Device	—	—	Power	Power
Per Port	Link/Activity	Link/Activity	Link/Activity	Link/Activity
Energy Efficiency
Green Ethernet (EEE, 802.3az)	Yes	Yes	Yes	Yes
FAN/Fanless	Fanless	Fanless	Fanless	Fanless
Physical Specifications
Enclosure Form Factor	Slim	Slim	Desktop/Rack	Desktop/Rack
Material	Metal	Metal	Metal	Metal
Dimensions (W x D x H mm)	TBD	TBD	TBD	TBD
Weight (g)	TBD	TBD	TBD	TBD
Environmental Specifications
Operating Temperature	0° – 40° C	0° – 40° C	0° – 40° C	0° – 40° C
Operating Humidity (non-condensing)	90% Max.	90% Max.	90% Max.	90% Max.
EMC
EMC Certifications	FCC/CE/VCCI	FCC/CE/VCCI	FCC/CE/VCCI	FCC/CE/VCCI
Safety
Safety Certifications	^*LVD/UL/CB	^*LVD/UL/CB	^*LVD/UL/CB	^*LVD/UL/CB
Power
Power In	Internal Power	Internal Power	Internal Power	Internal Power
	100-240VAC,	100-240VAC,	100-240VAC,	100-240VAC,
	50/60Hz	50/60Hz	50/60Hz	50/60Hz
Maximum Power Consumption	3.5 W	4.5 W	9.5 W	13.5 W
IEEE Network Protocols
IEEE 802.3 10BASE-T Ethernet	V	V	V	V
IEEE 802.3u 100BASE-TX Fast Ethernet	V	V	V	V
IEEE 802.3ab 1000BASE-T Gigabit Ethernet	V	V	V	V
IEEE 802.3x Flow Control	V	V	V	V
IEEE 802.3az Energy Efficiency Ethernet	V	V	V	V
IEEE 802.1p Priority Queue (QoS)	V	V	V	V

*Specifications are subject to change without notice.
