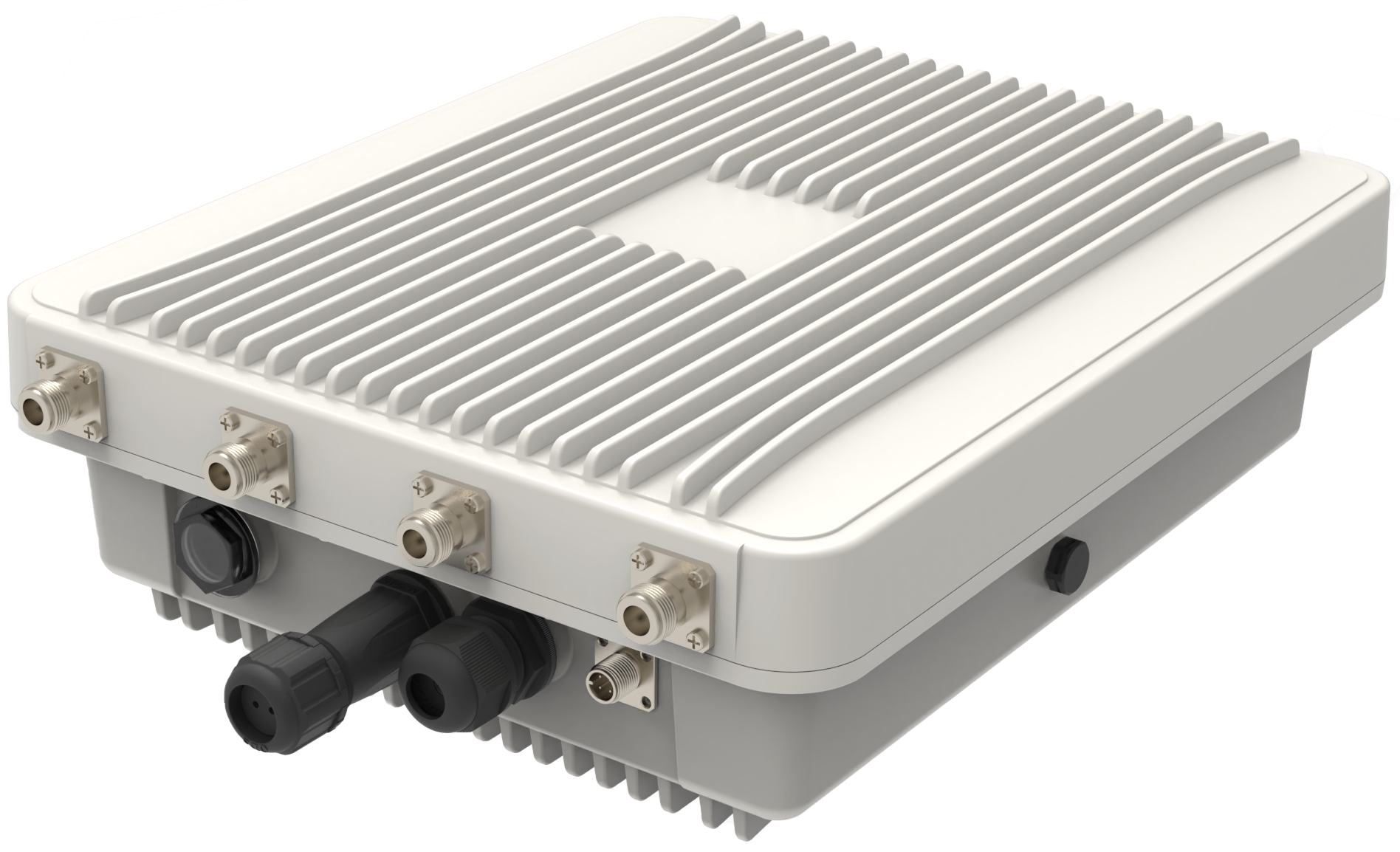

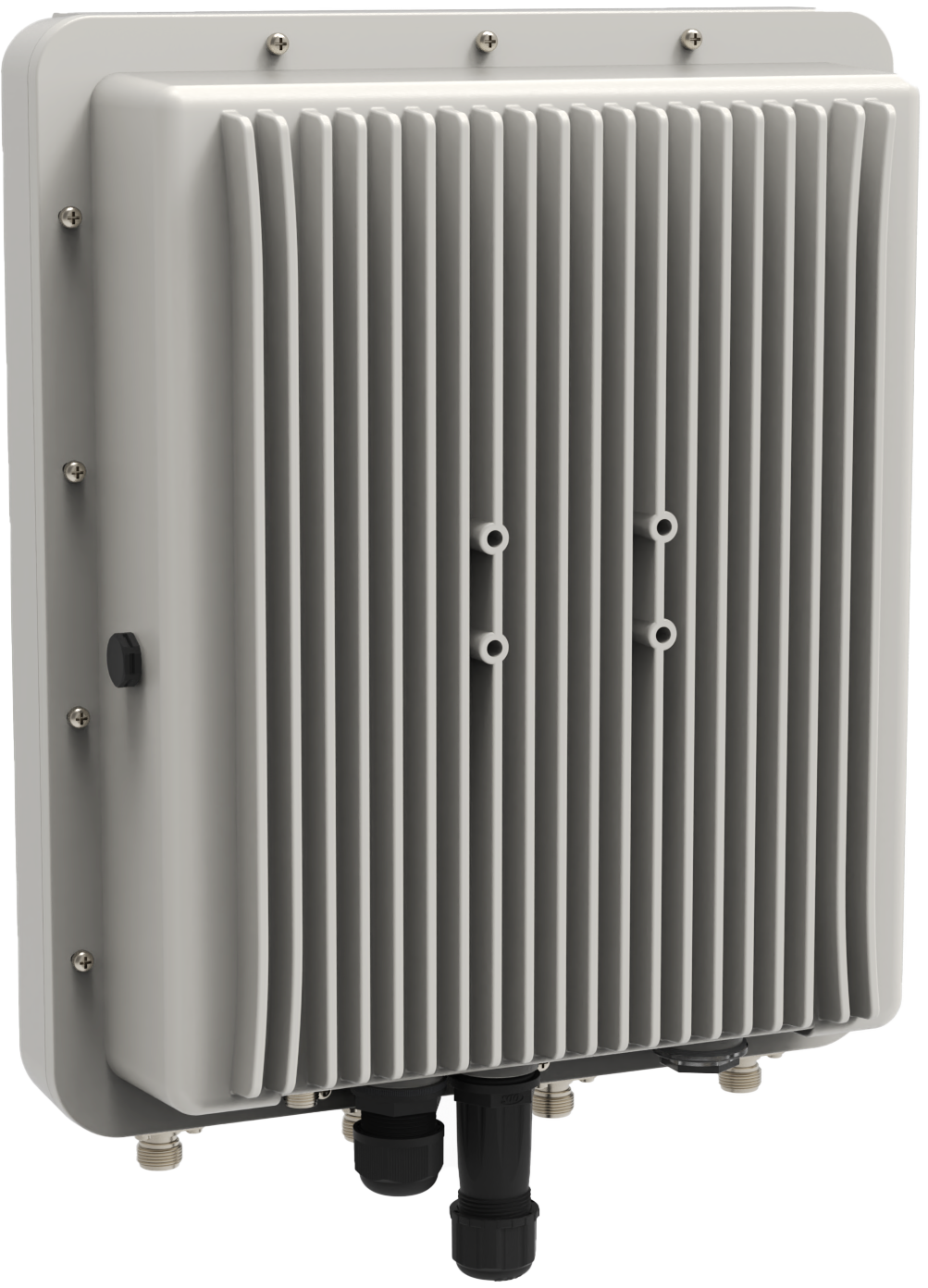

ORU-4402

O-RAN compliant radio unit, 4T4R 5G Sub-6 20 Watt High Power radio.

Overview

The ORU-4402 5G O-RU is an O-RAN–compliant radio unit designed for 5G Sub-6 transmission, reception, and baseband processing, delivering a total output power of up to 20 W.

It supports the n77, n78, n79, n48, and n41 frequency bands, enabling reliable outdoor 5G NR Sub-6 coverage. The ORU-4402 features a 4T4R architecture, with 5 W output power per channel.

The unit connects to an O-DU or FHGW through an O-RAN 7.2 split eCPRI interface with Low-PHY. Featuring external antennas and IP67 protection, the ORU-4402 ensures reliability and durability in demanding outdoor environments.

Features

3GPP 5G NR Release 17
- Mini-Slot
- RedCap
- O-RAN Compliant C/U/S/M-Plane
O-RAN Compliance Category A, Split 7.2a
4T4R MIMO with 100 MHz Bandwidth
Support DL/UL up to 256 QAM with 15 kHz and 30 kHz Tone Spacing
Global Frame Structure Including Japan Local 5G
Max EIRP: 43 dBm (4TR MIMO) + Antenna Gain
Timing Synchronization supports both PTP and SyncE
Frequency Support – N78/N79/N77/N48/N41
Built-in GNSS for GM (Optional)

Specifications

Wireless Technology	3GPP 5G NR Rel. 17 - Mini-Slot、RedCap、O-RAN Compliant C/U/S/M-Plane
	O-RAN Compliance Category A, Split 7.2a
	4T4R MIMO with 100 MHz Bandwidth
	Sub carrier spacing (SCS)：15/30kHz
	Support DL/UL up to 256 QAM with 15 kHz and 30 kHz Tone Spacing
	Operation in TDD Mode
	Global Frame Structure Including Japan Local 5G
Frequency Band	N78 (3.3 ~ 3.8 GHz) N79 (4.4 ~ 5.0 GHz) N77 (3.3 ~ 4.2 GHz) N48 (3.55 ~ 3.7 GHz) N41 (2.469 ~ 2.69 GHz)
RF Power	Max Tx Power 20 W per radio (5 W (37 dBm) per channel) Max EIRP 43 dBm (4TR) + Antenna Gain
Throughput	DL PHY Rate: 1.5Gbps
Antenna	4 N-Type antenna connectors
Timing Synchronization	PTP: ITU-T 8275.1, 8275.2, IEEE 1588v2 ITU-T 8273.2 Class C SyncE: ITU-T G.8262
External Interfaces	LED Indicator for Power and Operation Status
	1 x 10G SPF+ Port (Fronthaul eCPRI)
	4 x N-type antenna ports
	1 x N-type GNSS port (Optional)
Power Supply	36V ~ 60V DC in
Power Consumption	< 110 Watt Typical
ESD	8KV
Environmental	-40 C° to +55 C°
Ingress Protection	IP67
Mounting Type	Pole-mount
Enclosure Dimension	365 mm x 310 mm x 120 mm 10 Liters / 8.5 KG

Product Infomation

N78
ORU-4402-N78-N	O-RU 37dBm 4×4 N78, External Antennas, Normal
ORU-4402-N78-G	O-RU 37dBm 4×4 N78, External Antennas, GNSS
N79
ORU-4402-N79-N	O-RU 37dBm 4×4 N79, External Antennas, Normal
ORU-4402-N79-G	O-RU 37dBm 4×4 N79, External Antennas, GNSS
N77
ORU-4402-N77-N	O-RU 37dBm 4×4 N77, External Antennas, Normal
ORU-4402-N77-G	O-RU 37dBm 4×4 N77, External Antennas, GNSS
N48
ORU-4402-N48-N	O-RU 37dBm 4×4 N48, External Antennas, Normal
ORU-4402-N48-G	O-RU 37dBm 4×4 N48, External Antennas, GNSS
N41
ORU-4402-N41-N	O-RU 37dBm 4×4 N41, External Antennas, Normal
ORU-4402-N41-G	O-RU 37dBm 4×4 N41, External Antennas, GNSS
