Embedded SMARC AI SOM (System on Module)
SMARC-M8371
SMARC-M8391
MediaTek Genio 520/720 AI System On Module
Overview

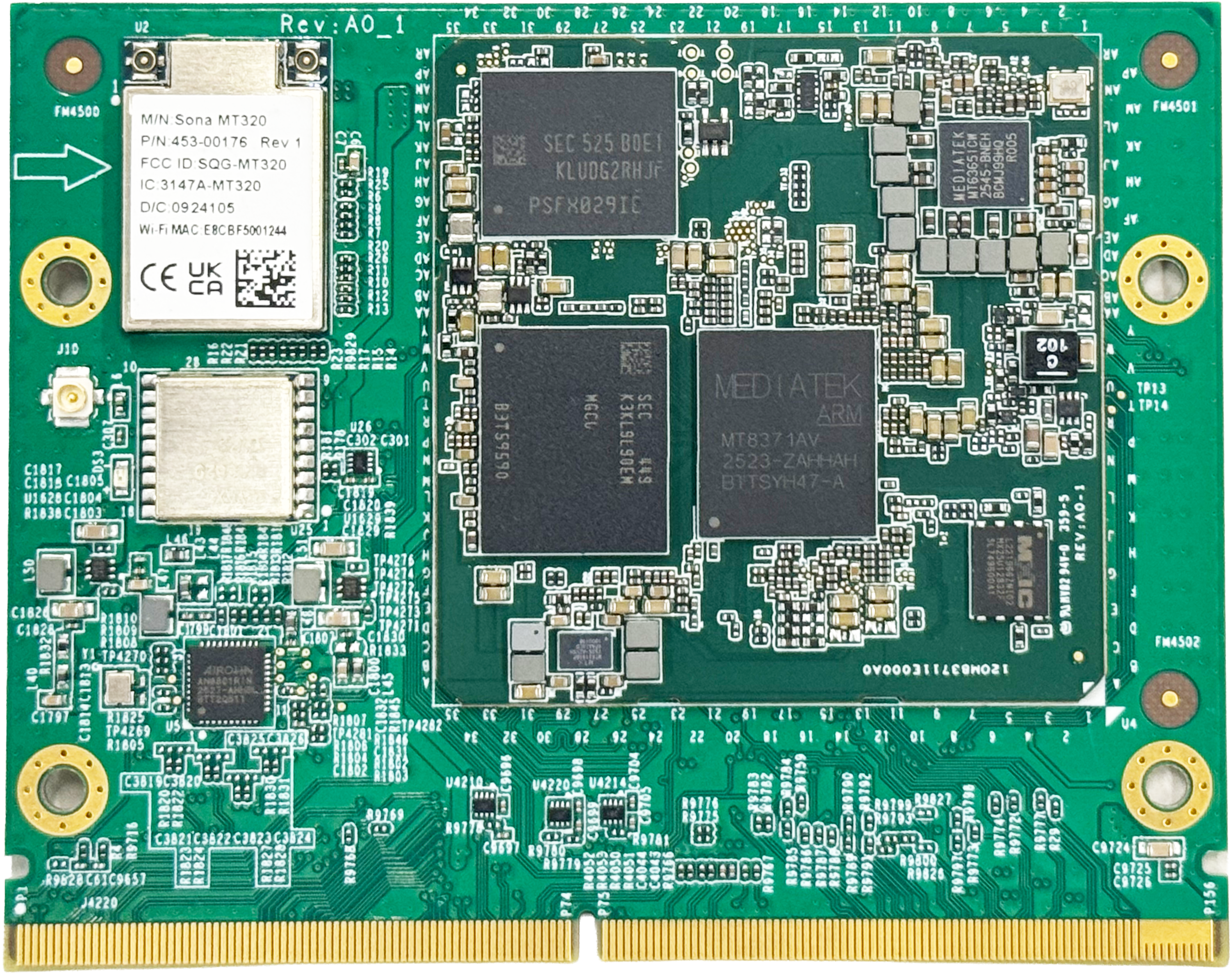

The SERA SMARC-M8371/SMARC-M8391 is a SMARC module powered by the MediaTek Genio 520/720 SoC includes an octa-core processor with 2x Arm Cortex-A78 cores and 6x Arm Cortex-A55, and an Arm Mali G57 MC2 GPU
The module incorporates a spate of IoT technologies, such as on-device artificial intelligence (AI) capabilities and support for up to 2 cameras, while delivering a low power envelope, making it the ideal solution for robotic and drone applications across various sectors, including consumer, enterprise, defense, industrial, logistics, and more.
Features
- SMARC-M8371: 2x ARM Cortex-A78@2.2GHz + 6x ARM Cortex-A55@2.0GHz.
- SMARC-M8391: 2x ARM Cortex-A78@2.6GHz + 6x ARM Cortex-A55@2.0GHz.
- MediaTek 8th Generation NPU (NPU8.0)(Generative AI), up to 10 TOPS
- SGET SMARC v2.1 compliant
- 8GB LPDDR5X
- MIPI-DSI, 1 set of 4D1C (MIPI C/D PHY) D-PHY 2.5Gbps, C-PHY 2.0Gbps
- Display resolution up to 4K/60Hz
- Onboard 128GB UFS
- Supports one GbE port
- Supports 2 x 4-Lane MIPI-CSI interfaces
- 2xUSB 3.0/2xUSB 2.0 interfaces
- 2×2 WiFi 6 (optional)
- GNSS Receiver (optional)
- Support Android/Yocto Linux/Ubuntu operation
- A high-performance multi-core AI processor with dedicated visual processing engine for a wide variety of computer vision applications, including facial recognition, object/people identification, collision warning, driver monitoring, gesture and posture detection, image segmentation
- Rich IO for peripherals, including scanners, card readers, sensors, factory equipment, network connectivity
Specifications
| System | CPU | SMARC-M8371: ARM Cortex-A78@2.2GHz x 2 + ARM Cortex-A55@2.0GHz x 6 SMARC-M8391: ARM Cortex-A78@2.6GHz x 2 + ARM Cortex-A55@2.0GHz x 6 |
| NPU | MediaTek 8th Generation NPU (NPU8.0) (Generative AI), up to 10 TOPS | |
| RAM | 8GB LPDDR5 | |
| Storage | 128GB UFS 3.1 | |
| Display | GPU | ARM Mali-G57 MC2 880MHz |
| DisplayPort | 1 x 4-Lane DP 1.4, 1 x 4-Lane eDP 1.4b | |
| MIPI | 1 x 4-Lane MIPI-DSI | |
| Camera | CSI | 2 x 4-Lane MIPI-CSI |
| Video | Encode | 4K@30fps HEVC/H.264 |
| Decode | 4K@60fps HEVC/H.264 | |
| Connectivity | Ethernet | 1x10/100/1000 Mbit/s |
| WiFi | 2x2 WiFi 6 (option) | |
| GNSS | GNSS receiver (option) | |
| Extension Busses | USB | 2 x USB 3.2 Gen 1, 2 x USB 2.0 |
| UART | 3 x UART | |
| I2S | 2 x I2S/PDM | |
| I2C | 2 x I2C | |
| SDIO | 1 x 4-Lane SDIO | |
| SPI | 2 x SPI | |
| GPIO | 10 x GPIO | |
| PWM | 2 x PWM (shared with GPIO) | |
| PCIe | 1 x PCIe 1-Lane Gen2 | |
| Power | DC | 5VDC |
| Form Factor | SMARC | SMARC Custom Size |
| Dimension | 80 x 65mm | |
| Operation System | Linux | Yocto Linux |
| Ubuntu | ||
| Android |
