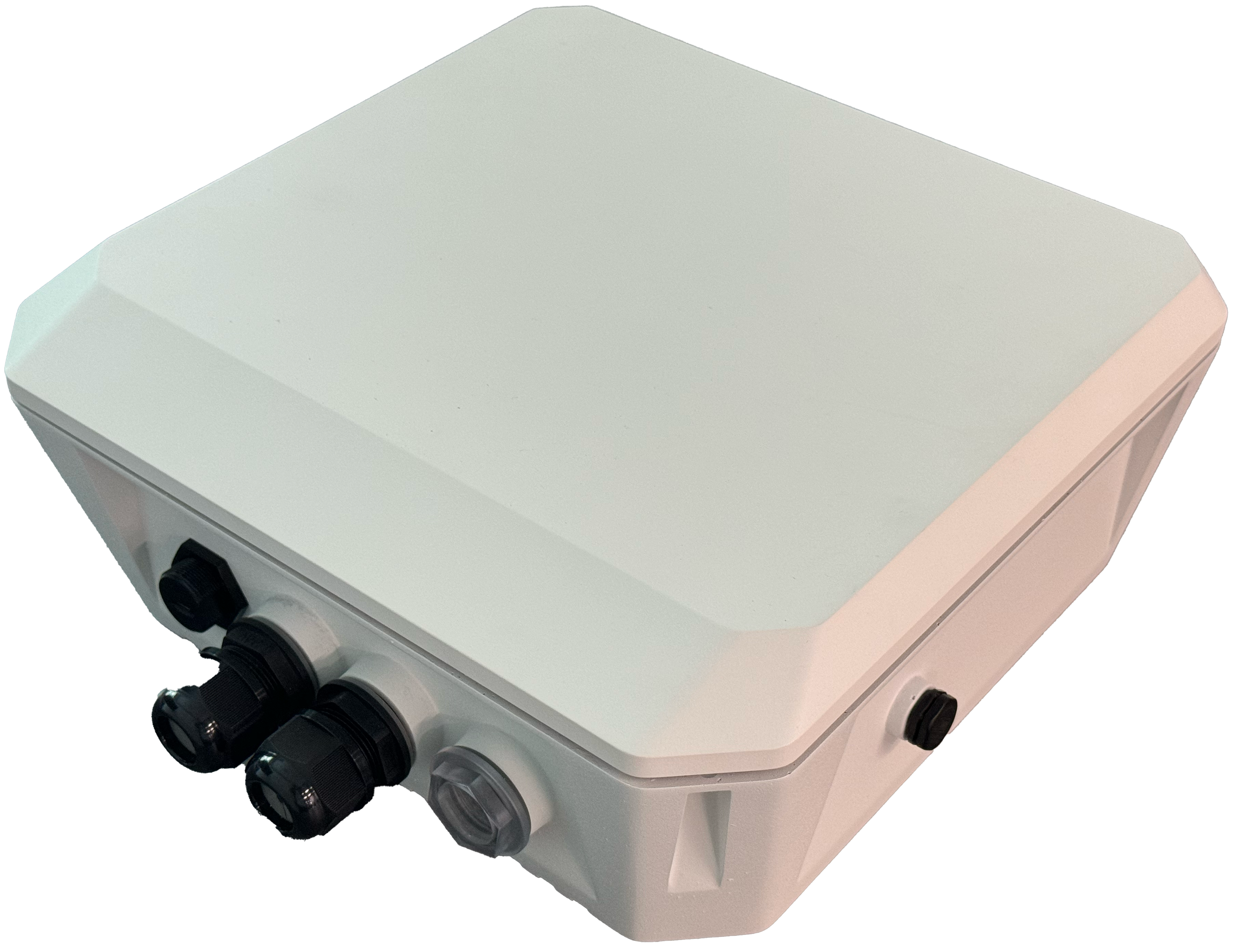

WTR-1100

Wi-Fi 7 / 5G NR Sub-6G BE19000

Outdoor Wireless HotSpot/CPE

802.11be Wi-Fi 7 Tri-Band simultaneously
4×4 802.11be 6GHz@320Mhz bandwidth, Speed: 11520Mbps
4×4 802.11be 5GHz@160Mhz bandwidth, Speed: 5760Mbps
4×4 802.11be 2.4GHz@40Mhz bandwidth, Speed: 1376Mbps
4×4 MU-MIMO UL&DL
Up to 4096QAM modulation@6GHz band
Design with high power RF FEM
Dual 10G Ethernet Ports
Powered by IEEE 802.3bt PoE
IP67 waterproof enclosure and antenna
Option GNSS for AFC
Option 5G-NR data module for WISP

FEATURES SPECIFICATIONS

上一頁下一頁

FEATURES

Supports 4×4 802.11be on 6GHz band.
Supports 4×4 802.11be on 5GHz band.
Supports 4×4 802.11be on 2.4GHz band.
Supports Dual Band 2×2+2×2 802.11be on 5GHz high band and Low band.
Supports Dual Band 2×2+2×2 802.11be on 6GHz high band and Low band.
Supports one m.2/PCI-E interface for optional 5GNR
Supports 802.3bt PoE powered on LAN1
Supports low-rate BT console port (Optional)
Supports TPM (Optional)
Supports GPS (Optional)

SPECIFICATIONS

Main Chipset
Wi-Fi SoC	Qualcomm IPQ9570
Radio	Qualcomm QCN9274
10G Ethernet PHY	Marvell MV-CUX3410
5G-NR Radio (option)	Qualcomm SDX62/SDX65
Bluetooth (option)	Nordic nRF52832
GNSS(option)	Airoha AG3352
TPM	Infineon SLB 9673
Memory
SPI-NOR Flash	32Mbytes
SPI-NAND Flash	256Mbytes
RAM	2GBytes DDR4
Wi-Fi
6GHz	4×4 802.11be 320MHz
5GHz	4×4 802.11be 160MHz
2.4GHz	4×4 802.11be 40MHz
LAN	10GBASE-T Ethernet x 2
Antenna Combination
Type	Band / Gain
Internal	2.4GHz / 8dBi
Internal	5GHz / 8dBi
Internal	6GHz / 8dBi
Internal	Bluetooth (2.4GHz) / 8dBi
External	2.4GHz / 5dBi
External	5GHz / 6dBi
External	6GHz / 6dBi
External	2.4GHz/5GHz / 3.5dBi/6dBi
I/O & Power
Button	Reset
LED	3 x customizable LED
Power	IEEE 802.3bt PoE via LAN 1
Dimensions	272 x 262 x 110 mm (without antenna)

*Specifications are subject to change without notice.
