2.0T Cloud Switch
DCS-O0848IF
48x25G and 8x100G leaf switch with hot swappable PSU and FANs, front to power airflow. Ideal for cloud infrastructure,
AI clusters, and enterprise data centers.
48x 25G/10G, 8x 100G
Front-to-Power Airflow
Redundant, hot-swappable
1+1 PSUs and 3+1 fans
SeraNOS Enterprise OS
Overview
The DCS-O0848IF is a high-density leaf switch with 48x 25G/10G SFP28 and 8x 100G QSFP28 ports, delivering 2.0 Tbps switching capacity. It features hot-swappable 1+1 PSUs, 3+1 fans, and front-to-rear airflow, making it ideal for high-performance, high-density deployments.
Powered by Marvell Prestera ASIC and Intel x86 CPU, and running SeraNOS (SONiC-based), it supports VXLAN, EVPN, INT, and automation tools like ZTP and Ansible.
Features
- 48x 25G/10G SFP28 ports
- 8x 100G QSFP28 ports
- 2.0 Tbps switching capacity with full line-rate L2/L3 forwarding
- Marvell ultra-low latency switching ASIC
- Multi-core Intel x86 control CPU
- Interface breakout support
- Hot-swappable 1+1 power supplies (PSU)
- Hot-swappable 3+1 fan modules
- Front-to-rear airflow design
- Compact 1U form factor for rack space efficiency
Software

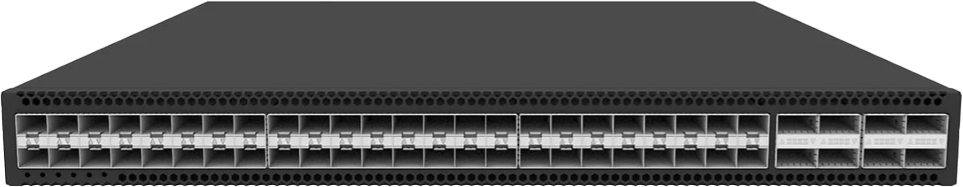

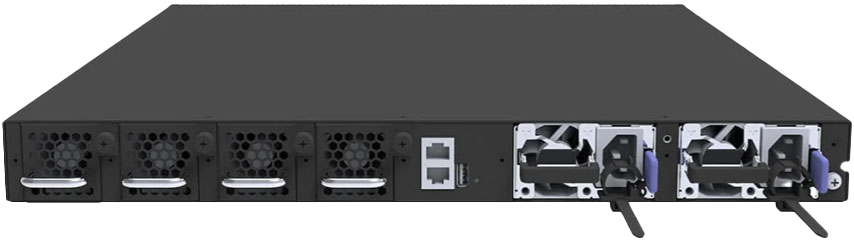

Panel Illustration
Specifications
Ports |
48x 25G SFP28, 8x 100G QSFP28 | Switch Chip |
Falcon 98CX8514 |
CPU |
Broadwell DE D-1508 | Number of VLANs |
4,094 |
Switching Capacity |
2.0 Tbps | MAC Address Entries |
128,000 |
Forwarding Rate |
2,630 Mpps | Jumbo Frame |
9,216 bytes |
SDRAM |
DDR4 16 GB | ARP Entries |
92,000 |
SSD Memory |
128 GB | IPv4/IPv6 Routes |
IPv4: 288,000 Host + 288,000 Prefix IPv6: 144,000 Host + 144,000 Prefix |
Packet Buffer |
24 MB | Latency |
~400ns |
Hot-swappable AC Power Supplies |
2 (1+1 Redundancy) | Max. Power Consumption |
<480W |
Hot-swappable Fans |
4 (3+1 Redundancy) | MTBF |
>100,000 Hours |
Dimensions (HxWxD) |
44x440x515mm | Rack Units |
1 RU |
Weight |
10.5KG | Thermal Airflow |
Front-to-Rear |
