ORU-4401

O-RAN compliant radio unit, 4T4R 5G Sub-6 radio.

Overview

ORU-4401 5G O-RU stands as an O-RAN compliant radio unit, equipped to deliver 5G Sub-6 radio signal transmission, receiving, and processing functionalities with a total output power up to 1W.

Compared to the previous generation, this new model is more compact and lighter, making it particularly well-suited for dense deployment scenarios.

It extends support for the n78, n79, n41, n77 or n48 bands, facilitating 5G NR Sub-6 outdoor radio coverage. The unit is designed with 4T4R capabilities and 250mW/channel output power.

It establishes connections with O-DU or FHGW through the O-RAN 7-2x split eCPRI interface and Lo-PHY. With provisions for built-in internal or external antennas and IP65 protection for outdoor applcation, it ensures resilience and reliability for outdoor deployment.

Features

Supports 3GPP TS38 Release 15 & R16 (upgradeable R17) RU and SA standard.
5G RU O-RAN Compliant Design
Output power up to 1W (250 mW per channel)
Global Frame Structure Including Japan Local 5G
Frequency Bands Supported : N41/N48/N77/N78/N79
RAN Compliance Category A, Split 7.2a
RAN Compliant C/U/S/M-Plane
E-Plane for Energy Saving
Software Defined Radio
Indoor and outdoor, internal and external antenna configurations offer a diverse range of application combinations

Specifications

Wireless Technology	Radio 3GPP 5G NR Release 15 (upgrade R16 & R17) RU and SA standard
	O-RAN Alliance O-RU Split option 7.2
	4Tx4R MIMO with 100MHz bandwidth to provide 5G-NR Sub-6GHz radio access
	Modulation Support: 256QAM DL/UL
Frequency Band	Supported N41/N48/N77/N78/N79
RF Power	Max Tx Power 24dBm per radio (250mW, 1T1R)
Throughput	DL PHY Rate: 1.5Gbps

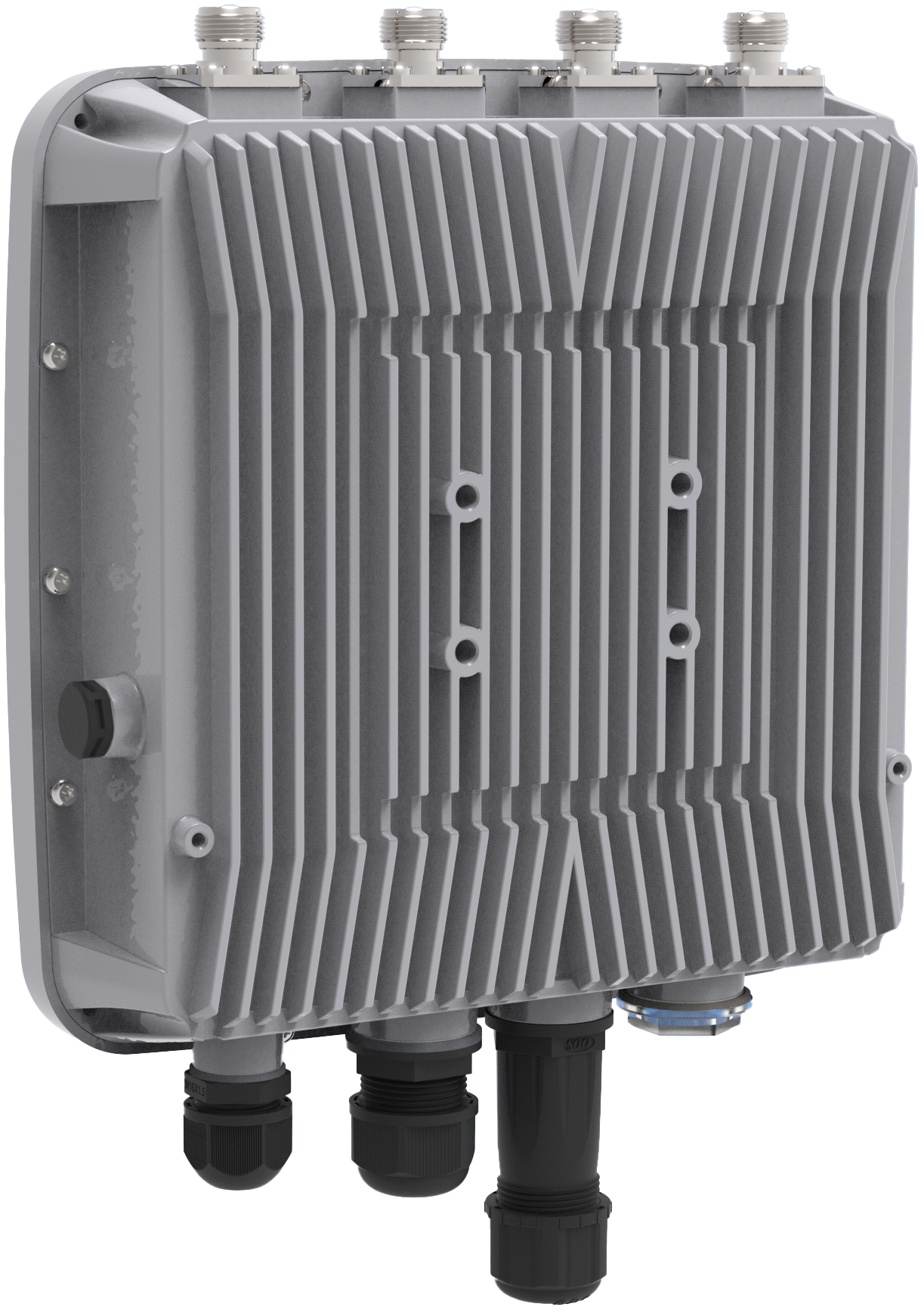

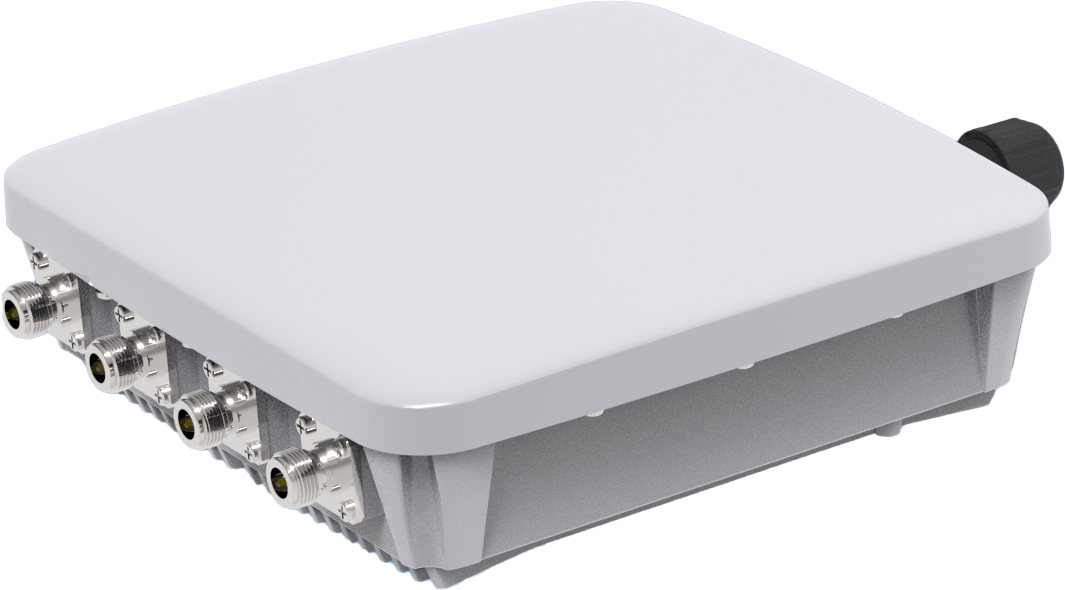

Antenna	4 embedded antennas for indoor model, 4 N-Type antenna connector for outdoor model
Timing Synchronization	PTP-IEEE1588v2 (mandatory) and Sync-E (option)
User Capacity	Support 200 x UE / Users (TBD)
External Interfaces	1x10GBASE-T RJ45 w/IEEE 802.3bt Type-4 PoE PD
External Interfaces	1x 10G SPF+
Power Supply	12VDC Power Supply
Power Supply	802.3bt PoE++ Type-4 PD
Power Consumption	45 Watt Typical
ESD	8KV
Environmental	Indoor model: -5C° to +40C° Outdoor model: -20C° to +60C°
Ingress Protection	Indoor model: IP50 Outdoor model: IP65
Mounting Type	Ceiling-mount and Wall-mount
Enclosure Dimension	230mm x 230mm x 65 mm
