48x1G and 6x25G campus PoE switch with hot-swappable PSU and fans, front-to-back airflow. Ideal for campus edge, high-density access, and secure enterprise connectivity.

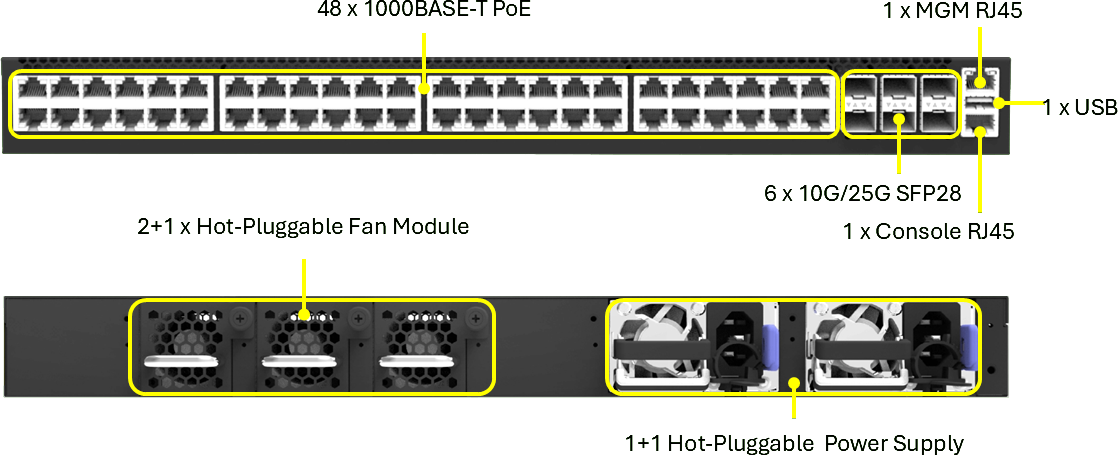

The ENS-O0648FB-P1440W / ENS-O0648FB-P740W is a 1RU campus access switch with 48x 1G RJ45 and 6x 25G SFP28 uplinks, delivering 210 Gbps switching capacity and wire-speed L2/L3 forwarding. It supports a maximum of 48-port 30W PoE+ (802.3at), of which 8 ports can be configured as 60W PoE++ (802.3bt) for powering attached IP phones, wireless access points, or other standards-compliant PoE and PoE+ end network devices. It features hot-swappable 1+1 power modules and 2+1 fan modules with right-to-left airflow, optimized for secure and high-density campus deployments.
Powered by Marvell Prestera ASIC and ARM64 CPU, and running SeraNOS (SONiC-based), it supports VXLAN, EVPN, and advanced access control with 802.1x and IP Source Guard.
Ports |
48 x 1G RJ45, 6 x 25G SFP28 | Switch ASIC |
Marvell AlleyCat5X |
Switching Capacity |
210Gbps | MAC Address Entries |
32K |
Forwarding Rate |
510Mpps | IPv4 Prefix Routes |
32K |
RAM |
4GB | IPv6 Prefix Routes |
16K |
Flash Memory |
32 GB eMMC | ARP Entries |
16K |
Max. Power Consumption |
131W (without PoE) | Input Range |
100-240V AC |
Packet Buffer |
3MB | Power Module |
1+1 Hot-pluggable |
PoE Standard |
IEEE 802.3af(15.4W)/at(30W)/bt(60W) | PoE Budget |
ENS-O0648FB-P740W: 740W ENS-O0648FB-P7401440W: 1440W |
Rack Space |
1RU | Fan Module |
2+1 Hot-pluggable |
Dimensions (HxWxD) |
44 x 440 x 290mm | Airflow |
Front to Back |
Weight |
9.3KG | Operating Temperature |
0 - 45℃ |
