2.2T Campus Access Switch

DCS-O0648IE

48x10G and 6x100G campus switch with hot-swappable PSU and fans, front-to-rear airflow. Ideal for enterprise edge, high-throughput access, and aggregation uplinks.

上一頁下一頁
48x10G, 6x100G QSFP28
1+1 Hot-swappable PSU, 2+1 Fans
Supports 802.1x, ACLs, IP Source Guard
SeraNOS Enterprise OS

Overview

The DCS-O0648IE is a 1RU campus aggregation switch with 48x 10G SFP+ and 6x 100G QSFP28 uplinks, delivering 2.2 Tbps switching capacity and high forwarding performance. It features hot-swappable 1+1 power modules and 2+1 fan modules with front-to-rear airflow, designed for scalable enterprise access and distribution layers.

Powered by Marvell Prestera ASIC and ARM64 CPU, and running SeraNOS (SONiC-based), it supports full L2/L3 features, VXLAN, EVPN, and secure access control via 802.1x and ACLs.

Features

  • 48x 10G SFP+ ACCESS PORTS
  • 6x 100G QSFP28 UPLINK PORTS
  • 2.2 TBPS SWITCHING CAPACITY WITH FULL L2/L3 FORWARDING
  • MARVELL PRESTERA SWITCHING ASIC
  • MULTI-CORE ARM64 CONTROL CPU
  • ADVANCED CAMPUS SECURITY WITH 802.1X, IP SOURCE GUARD
  • HOT-SWAPPABLE 1+1 POWER MODULES
  • HOT-SWAPPABLE 2+1 FAN MODULES
  • FRONT-TO-REAR AIRFLOW DESIGN
  • 1RU COMPACT FORM FACTOR FOR DISTRIBUTION AND AGGREGATION DEPLOYMENTS

Software Features

Layer 3 Features

  • IPv4/v6 Dual Stack
  • Policy Based Routing
  • Resilient ECMP
  • ARP-to-Host
  • VRF
  • Bi-Directional Forwarding Detection (BFD)
  • IGMP v2/v3
  • Route Map
  • VRRP
  • GRE
  • Routing Protocols: OSPF v2/v3, BGP, MP-BGP

Quality of Service (QoS)

  • 8 Queues per Port
  • 802.1p Based Classification
  • DSCP Based Classification
  • Strict priority queueing
  • DWRR Scheduling
  • Policing/Shaping
  • Rate Limiting

Virtualization Features

  • VXLAN Centralized/Distributed Gateway
  • EVPN Type 2/3/5

Management and Monitoring

  • Industry Standard CLI
  • Zero Touch Provisioning (ZTP)
  • SNMP v1/v2/v3
  • sFlow
  • Port Mirroring
  • Syslog
  • Log Management
  • PTP IEEE 1588v2 (TC and BC)
  • Containerized Custom Tools
  • BGP/BFD Operational Status

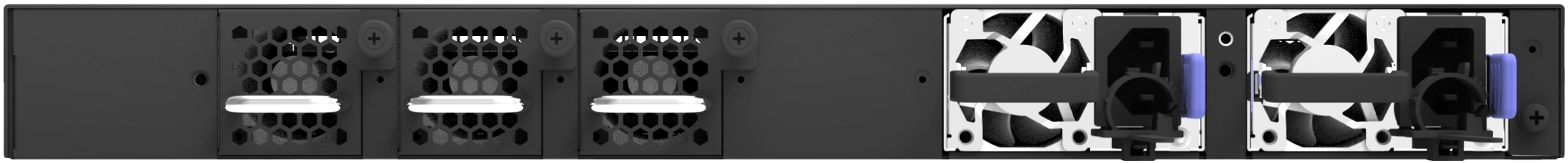

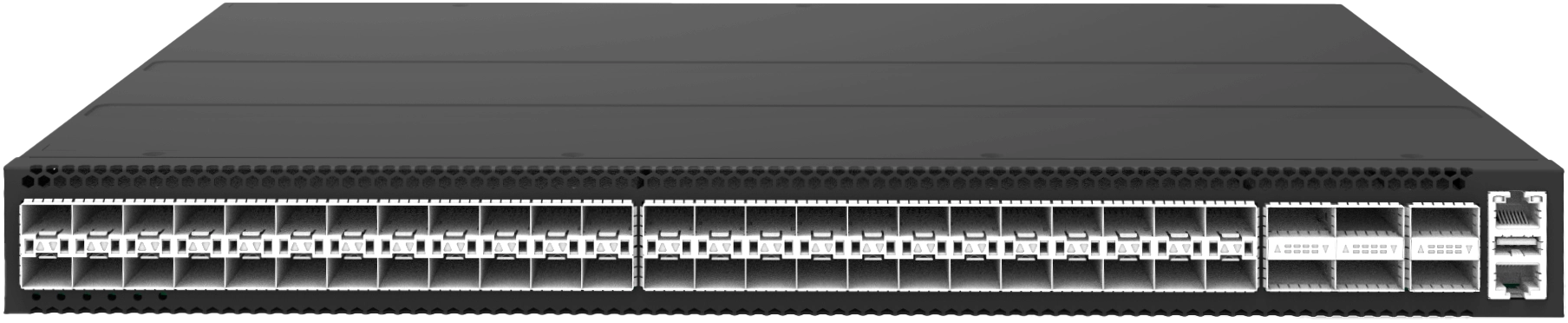

Panel Illustration

Specifications

Ports
 48 x 10G SFP+, 6 x 100G QSFP28
Switch ASIC
 Marvell Aldrin2
Switching Capacity
 2.2Tbps
MAC Address Entries
 32K
Forwarding Rate
 296.3Mpps
IPv4 Prefix Routes
 64K
RAM
 4GB
IPv6 Prefix Routes
 32K
Flash Memory
 32 GB eMMC
ARP Entries
 16K
Max. Power Consumption
 125W
Input Range
 100-240V AC
Packet Buffer
 6MB
Power Module
 1+1 Hot-pluggable
Rack Space
 1RU
Fan Module
 2+1 Hot-pluggable
Dimensions (HxWxD)
 44 x 440 x 470mm
Airflow
 Front to Rear
Weight
 9.1KG
Operating Temperature
 0 - 45℃
