BER9500 Wi-Fi 7 Router – Sera Network INC

BE9500

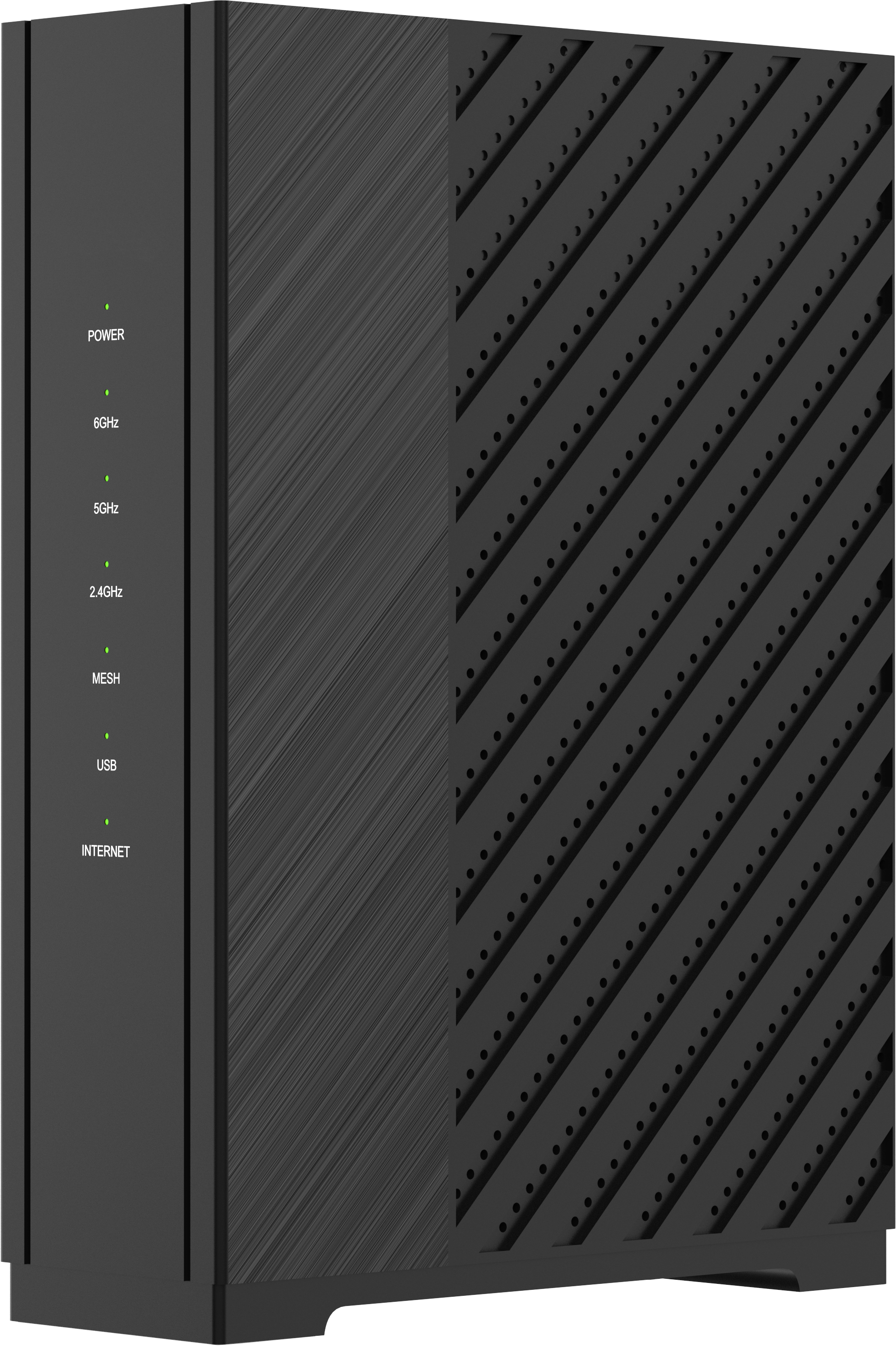

BE9500 Wi-Fi 7 Router

802.11be Wi-Fi 7 Tri-Band simultaneously
2×2 802.11be 6GHz@320Mhz bandwidth, Speed: 5760Mbps
2×2 802.11be 5GHz@160Mhz bandwidth, Speed: 2880Mbps
2×2 802.11be 2.4GHz@40Mhz bandwidth, Speed: 688Mbps
2×2 MU-MIMO UL&DL
Up to 4096QAM modulation@6GHz band
One 10G Ethernet WAN Port
Three 2.5G Ethernet LAN ports
Supports EasyMesh
Internal six high-performance antennas

FEATURES SPECIFICATIONS

FEATURES

802.11be Wi-Fi 7 Tri-Band simultaneously
2×2 802.11be 6GHz@320Mhz bandwidth, Speed: 5760Mbps
2×2 802.11be 5GHz@160Mhz bandwidth, Speed: 2880Mbps
2×2 802.11be 2.4GHz@40Mhz bandwidth, Speed: 688Mbps
2×2 MU-MIMO UL&DL
Up to 4096QAM modulation@6GHz band
One 10G Ethernet WAN Port
Three 2.5G Ethernet LAN ports
Supports EasyMesh
Internal six high-performance antennas

SPECIFICATIONS

Main Chipset
Wi-Fi SoC	Qualcomm IPQ5322
Radio	Qualcomm QCN6274
10G Ethernet PHY	Marvell AQR113C
2.5G Ethernet PHY	Qualcomm QCA8386
Memory
SPI-NAND Flash	128Mbytes
RAM	1GBytes DDR4
Wi-Fi
6GHz	2×2 802.11be 320MHz
5GHz	2×2 802.11be 160MHz
2.4GHz	2×2 802.11be 40MHz
WAN	10GBASE-T Ethernet x 1
LAN	2.5GBASE-T Ethernet x 3
Antenna
Band	Gain
2.4GHz	3.5dBi x 2
5GHz	3.5dBi x 2
6GHz	3.5dBi x 2
I/O & Power
Button	Reset x 1 , WPS x 1
LED	Power, 2.4G, 5G, 6G, Internet, Ethernet x 4
Power	12VDC/3.0A
Dimensions	247.1×180.00×65.00 mm

*Specifications are subject to change without notice.
