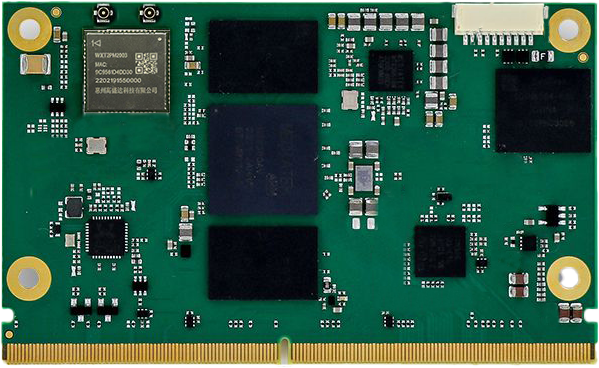

SOM-MTK-GENIO-510

MediaTek Genio 510/700

Genio 510: 2x ARM Cortex-A78@2.0GHz + 4x ARM Cortex-A55@2.0GHz.
Genio 700: 2x ARM Cortex-A78@2.2GHz + 6x ARM Cortex-A55@2.0GHz.
Genio 510: 3.2 TOPS APU system.
Genio 700: 4.0 TOPS APU system.
SMARC revision 2.1 compliant.
Up to 8GB LPDDR4X.
DSI up to 1080P.
HDMI up to 4K/60
Onboard eMMC5.1 up to 64 GB
Supports One GbE port (Optional The second)
Supports 2x MIPI CSI 4 lane interfaces (Optional 1x MIPI CSI 4 lane+2x MIPI CSI 2 lane)
USB3/USB2 interfaces

Genio 510: 2x ARM Cortex-A78@2.0GHz + 4x ARM Cortex-A55@2.0GHz.
Genio 700: 2x ARM Cortex-A78@2.2GHz + 6x ARM Cortex-A55@2.0GHz.
Genio 510: 3.2 TOPS APU system.
Genio 700: 4.0 TOPS APU system.
SMARC revision 2.1 compliant.
Up to 8GB LPDDR4X.
DSI up to 1080P.
HDMI up to 4K/60
Onboard eMMC5.1 up to 64 GB
Supports One GbE port (Optional The second)
Supports 2x MIPI CSI 4 lane interfaces (Optional 1x MIPI CSI 4 lane+2x MIPI CSI 2 lane)
USB3/USB2 interfaces

System	CPU	Genio 510: ARM Cortex-A78@2.0GHz x 2 + ARM Cortex-A55@2.0GHz x 4 Genio 700: ARM Cortex-A78@2.2GHz x 2 + ARM Cortex-A55@2.0GHz x 6
	APU	Genio 510: Dual AI processing system (MediaTek DLA + VP6), up to 3.2 TOPS Genio 700: Dual AI processing system (MediaTek DLA + VP6), up to 4.0 TOPS
	RAM	8GB LPDDR4X
	Storage	32MB eMMC
Display	GPU	ARM Mali-G57MC2
	HDMI	HDMI 2.0 4K60fps
	DisplayPort	DisplayPort 1.2
	MIPI	MIPI-DSI 4-Lane
	LVDS	Dual Channel LVDS
Camera	CSI	2 MIPI-CSI 4 Lane or 1xMIPI-CSI 4 Lane + 2xMIPI-CSI 2 Lane
Video	Encode	4K@30fps 8-bit (H.265/H.264)
Video	Decode	4K@60fps 8/10-bit (H.265/H.264/VP9/AV1), FHD@60fps (VP8/MP2/MP4)
Connectivity	Ethernet	2xGigabit Ethernet
	Wi-Fi	2×2 Wi-Fi 5
	Bluetooth	Bluetooth 5.2
Extension Busses	USB	3xUSB3.0
	UART	3xSerail UART
	CANBUS	1xCAN2.0B
	I2S	1xI2S
	I2C	2xI2C
	GPIO	14xGPIO
	PCIe	1xPCIe 1 Lane Gen2
Power	DC	5VDC
Foam Factor	SMARC	SMART Short Size
Foam Factor	Dimension	80×50 mm
Operation System	Linux	Ubuntu
Operation System	Linux	Yocto Linux

*Specifications are subject to change without notice.
