DCS206P-48S-M-H

Highlights

Port Combination

48 x 10 GE (SFP+) + 6 x 100 GE (QSFP28)

Open Network Operating System

The enterprise NOS based on SONiC
Flexible container system architecture

Rich Features

Full layer-3, Leaf-Spine architecture
IPv6, ECMP, IGMP, GRE, VXLAN, EVPN
802.1x, DHCP Snooping, DAI, IPSG

Extensible Cloud Cluster

2304 ports capacity in single cloud cluster and 147k ports as a campus capacity
Without proprietary stacking cable
ZTP and cloud cluster as single switch

Product Applications

The SF-M Series can be used as large-scale campus access, aggregation switch, or small-scale campus access, core switch.

OVERVIEW Features SPECIFICATIONS Ordering Information

Overview

The SF-M series cloud campus switches are access and aggregation products designed for next generation cloud campus network. They run with the enterprise-ready SONiC version (SeraNOS).

Based on Marvell Prestera switch ASIC, SF-M series switches provide large table entry size, wire-speed forwarding and low power consumption, and support comprehensive L2 and L3 functions, have rich security features. All 1 GE/2.5 GE hardware has a PoE version to provide 802.3at/802.3bt standard PoE functions.

Operating System Highlights

SeraNOS is an enterprise network operating system developed with SONiC and SAI as the kernel.

Integrated rich L2/L3 network features, complete support for network virtualization, QoS policies and other services.
Advanced functional containerized & event-driven system architecture to accelerate network service development/customization.
Provides an open Rest API interface that can be centrally managed and invoked by third-party applications such as cloud management platform.
Provides KLISH command line for traditional network engineers.

suitable SKUs to build a campus network from tens to hundreds of thousands access ports.

All layer-3 network can avoid some problems in traditional campus network like broadcast storm and ethernet loop.
Leaf switches have the same configuration, so one profile can be used to configure all the leaf switches with ZTP.
With distributed gateway deployed, wireless terminals can achieve lossless roaming by connecting a new gateway before disconnecting the former one.
Virtualization features like VXLAN, BGP EVPN are also migrated from data center, which can meet the growing requirements of campus network.

Cloud-based Campus Network

Sera is the first vendor that run SONiC in campus switches. Spine-leaf architecture is introduced into campus network, so that we just need a few also be left blank as pure Linux, customer can run applications they need, such as management

Optional DPU for Multipurpose

CX102S-16GT-M-SWP has an option to add at most 2×4-core DPU. Customer can choose to pre-install OpenWRT to play the role as a router or a firewall, or OpenWiFi controller to manage WLAN. It can tools or radius server.

Click here to add your own text

Cloud Cluster as a Single Device

Click here to add your own text

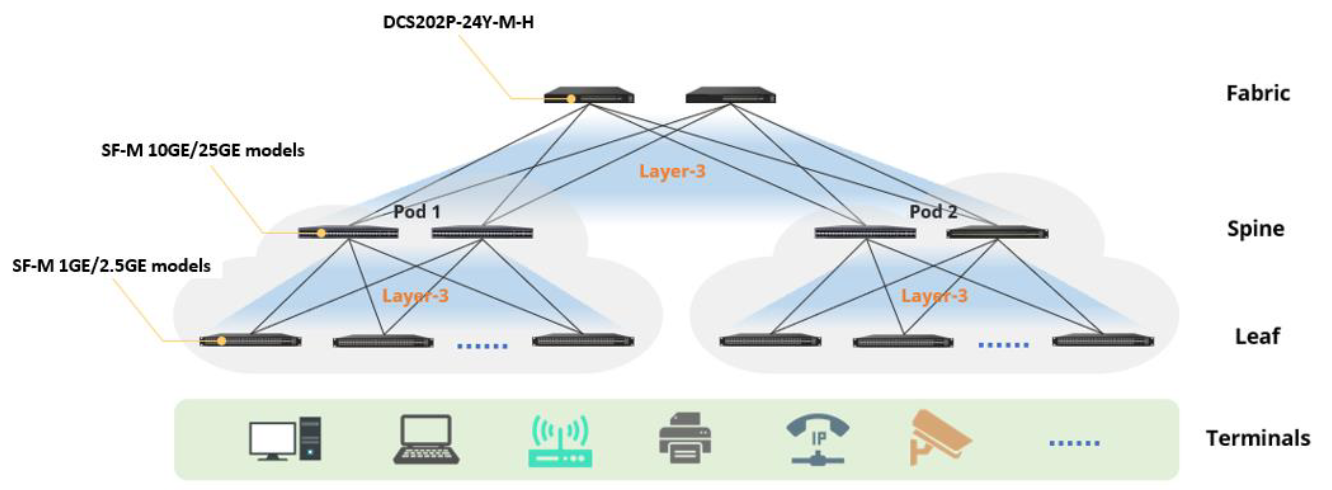

Scale-out spine-leaf architecture to build a cloud cluster instead of traditional stacking features.
Compared with traditional stacking, there is no limitation of max stackable device number or proprietary stacking cable.
As an example, when DCS206P-48S as spine and DCS204Y-48GT as leaf, a POD can be built to provide 48 x 48=2304 access ports.
After simple peer configurations, the cloud cluster can be built and considered as a virtual device, other configurations can be synchronized automatically.

Features

Basic Features

Port information: packet rate, packet quantity, packet loss, error packet
Optical module information: module type, module state, optical power, temperature
Port configuration: up and down, rate adjustment, MTU, delayed startup

Layer 2 Features

VLAN
MAC dynamic learning
MAC flapping detection
LLDP
Voice VLAN
QinQ
STP
MSTP
Port mirroring based on RX and TX direction
Storm suppression

Layer 3 Features

IPv4, IPv6 dual stack
Static ARP
Dynamic ARP
ARP Proxy
DHCPv4/v6
DHCP relay
NDP
Switch Virtual Interface (SVI)
Routing protocols: OSPFv2, OSPFv3, BGP4, BGP4+, ISIS
Policy routing based on 5-tuple
Equal Cost Multi Path (ECMP)
IGMPv1, IGMPv2
Multicast VLAN
VRF
VXLAN
EVPN
GRE

Security Features

TACACS+
802.1x and MAB authentication
Ingress and egress ACL
Layer 2 port isolation
DHCPv4/v6 Snooping
ND Snooping
Dynamic ARP Inspection (DAI)
IP Source Guard v4/v6

Quality of Service

Priority mapping based on 802.1p and DSCP
Traffic policing
Traffic shaping based on port or queue
Queue scheduling based on PQ and DWRR algorithms

Reliability Features

Static link aggregation
LACP
Load balancing based on SMAC, DMAC, SIP, DIP, SPORT, DPORT and other HASH methods
Uplink and downlink association (monitor-link)
BFD: OSPF, BGP, IS-IS association

Management Features

SSH, telnet, console login
CLI style: Linux, Klish
SNMPv1, SNMPv2, SNMPv3
Zero Touch Provisioning (ZTP)
Network Time Protocol (NTP)
Syslog
Alarm information: temperature, power, fan, traffic overflow

SPECIFICATIONS

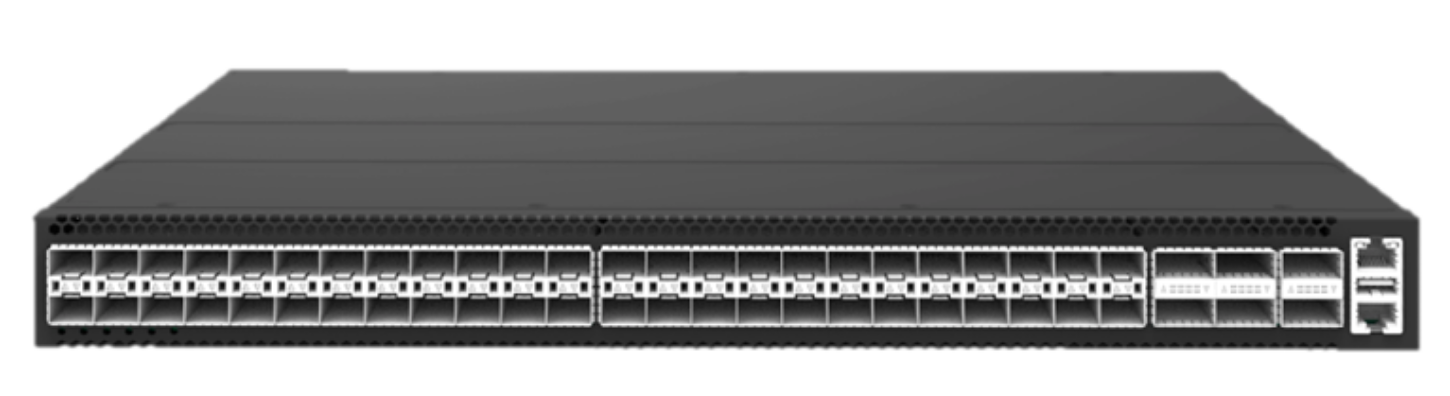

Product Model		DCS206P-48S-M-H
Network Interface	100 GE (QSFP28)	6
	25 GE (SFP28)	–
	10 GE (SFP+)	48
Switching Chip	Chip Model	Marvell Prestera
Switching Chip	Switching Capacity	1.09 Tbps
CPU	CPU	Multi-core ARM64
Flash	Flash	32 GB EMMC
Management Interface	USB	1 x USB 2.0
	Console	1 x Console RJ45
	MGMT	1 x MGMT RJ45
Dimensions	Dimensions (W x H x D mm)	440 x 44 x 470
Dimensions	Weight	9.1 kg
Electrical Characteristics	Maximum Power Consumption	150 W
	Power and Fan	1+1 power module, 2+1 fan modules
	Power and Fan	hot-pluggable
	Input Voltage	100 – 240 V AC
	Input Voltage	36 – 72 V DC
Operating Conditions	Operating Temperature	0 – 45℃
Operating Conditions	Relative Humidity	5% – 90% (non-condensing)

Ordering Information

Part Number	Description
DCS206P-48S-M-H	Enterprise aggregation switch system, 48 x 10 G/1 G SFP+, 6 x 100 G QSFP28, hot-pluggable 1+1 PSU, hot-pluggable 3+1 FANs, front-to-rear airflow
