5G-NR Outdoor CPE + Indoor AX3000 Wi-Fi 6 Router

5G-NR Outdoor CPE

Indoor AX3000 Wi-Fi 6 Router

This 5G outdoor CPE is compatible with both NSA and SA dual modes, making it suitable for all network types worldwide. Simply plug it in and enjoy ultra-fast broadband connections.

The 5G Outdoor CPE + Indoor AX3000 WiFi-6 Router System is built on a cutting-edge embedded platform, designed to meet the increasing demands for mobile connectivity and deliver exceptional speeds.

The CPE revolutionizes your experience with VR, AR, and 4K/8K streaming, allowing you to enjoy these technologies effortlessly. With the 802.11ax (Wi-Fi 6) technology, the device offers broader wireless coverage and increased bandwidth.

FEATURES SPECIFICATIONS

FEATURES

5G-NR, 3GPP Release R.15 with NSA/SA mode (CPE)
AX3000 Wi-Fi 6 Dual-band Simultaneously (Router)
1x 2.5Gigabit Ethernet LAN Port (CPE)
1x Gigabit Ethernet WAN Port w/Passive PoE out (Router)
3x Gigabit Ethernet LAN Port (Router)
6KV Lightning Protection (CPE)
One 3FF Micro Sim (CPE)

SPECIFICATIONS

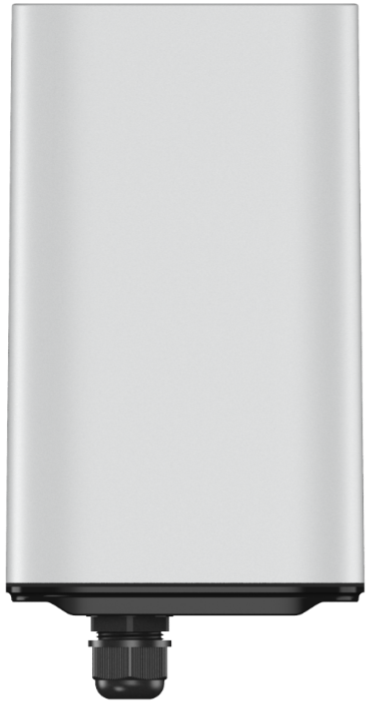

5G Outdoor CPE

Technical Standard	Cellular		3GPP Release 15
	Bluetooth		BLE 5
Chipset	Qualcomm Snapdragon X55
	Nordic nRF52833
ROM/RAM	4Gbits ROM and 4Gbits RAM
Physical Interfaces	1x LAN Port	2.5GE Support PoE IEEE 802.3AT
	1x Sim Slot	1x Micro Sim slot.
	1x USB Port	USB3.0 Type-C (for debugging purpose)
	1x Rest Key	For Hardware resetting.
	5x LED Indicators	3 LEDs for Signal Strength (3 bars) Network Service (5G or 4G) Power
Antennas	4x omni-directional antennas	For 360° Signal reception enables easier installation. They are with up to 5dBi Gain.
	2x directional antennas	For enhancement on 5G Sub-6 Bands of N40/N78 with up to 9dBi gain.
	1x BLE	For BLE antenna.
Cellular Capability	Mode	NSA and SA
	Bands/CA	5G NR: N1/3/5/7/8/28/38/40/41/48/77/78/79 4G LTE: B1/3/5/7/8/20/28/32/34/38/39/40/41/42/43/48
	Modulation	Sub-6 UL: 256QAM, DL: 256QAM LTE DL:1024QAM, UL:256QAM
	MIMO	4 x 4 MIMO downlink 2 x 2 MIMO uplink
Environmental	IP Rating	IP65 Compliant
	Lightning Surge Protection	6KV
	Temperature	Working Range -20 to 55°C/5-95% Humidity Storage Range -40 to 85°C/5-95% Humidity
	Mounting Methods	Mounting on Wall (Special design for allowing horizontal 110° adjustment) Mounting to a pole
PoE Adapter	Input	AC/DC Power supply: AC 100V-240V
	PoE type	Passive PoE DC 48V / 0.5A
	RJ45	PoE Port (To Outdoor CPE)
		LAN Port (To Indoor Router)
Power consumption	<16.8W
Dimensions	22513045mm

*Specifications are subject to change without notice.

SPECIFICATIONS

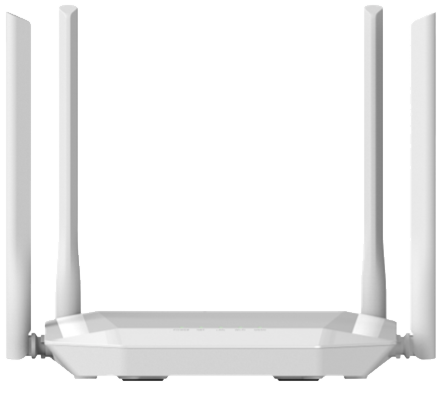

Indoor AX3000 Wi-Fi 6 Router

Physical	Software Features	System Requirements
Dimensions:250x130x35mm Operating Temperature: 0℃~40℃ Storage Temperature: 0℃~60℃ Humidity: 10%~95%(non-condensing)	Device Management TR069/TR369 SNMP FOTA Easy Mesh IPv4/IPv6 Dual stack DHCP Firewall & Access control IP Firewall MAC/IP/URL/Port Filters Parental control DHCP Server Proxy DNS Port forwarding/DMZ/UPnP WAN Types Dynamic IP Static IP PPPoE PPTP L2TP Web UI & ODU Management UI. VoLTE/VoNR (working with ODU) Advanced ALG VPN Passthrough	Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

Technical
IPQ5018 + QCN6102 Qualcomm high-performance chip. IEEE 802.11 ax/ac/na 5GHz; IEEE 802.11 ax/n/b/g 2.4GHz Wi-Fi6 (802.11ax) dual bands AX3000 2.4GHz 2×2 20/40MHz, up to 480Mbps 5GHz 2×2 20/40/80/160MHz up to 2402Mbps 160MHz channel support 256 users access OFDMA/MU-MIMO/BSS Coloring/Band Steering. DDR3 256MB + FLASH 128MB One RJ11 port, support Volte/VoNR Four 10/100/1000Mbps Gigabit Ethernet RJ45 ports 1 WAN (optional to be PoE) 3 LANs 4 long range high gain antennas 5G up to 7dBi 2.4G up to 5dBi Easy Mesh Power DC 12V/1A

*Specifications are subject to change without notice.
